Protoboards
Product Description
Finished prototyping your project and ready to make it permanent? Looking for something more familiar to use then those individually unconnected pad holes of a regular perf board? Enter the protoboard. Not only do they look amazing, they're high quality to boot.

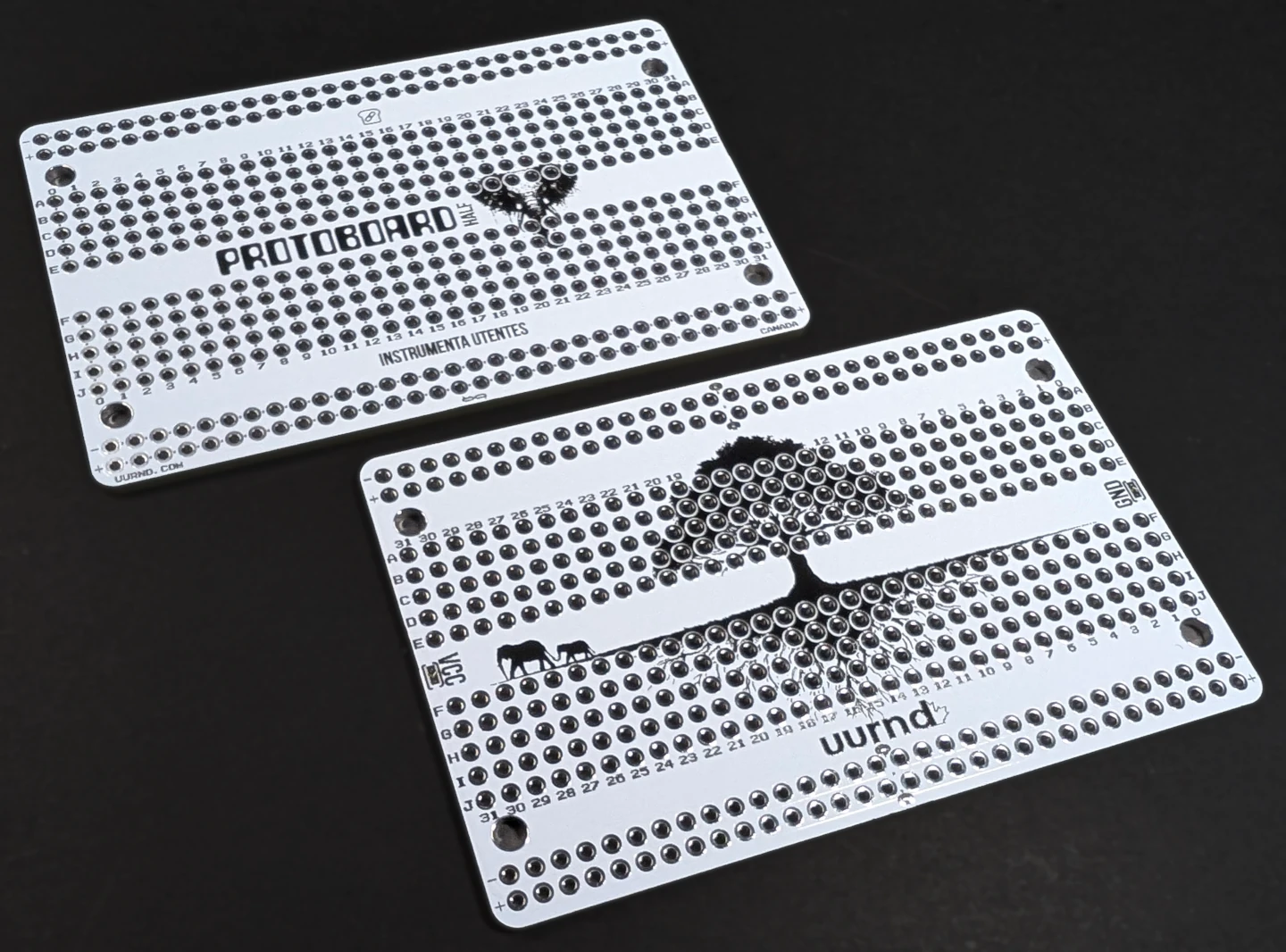

Measuring at just 53.34mm[L] x 83.82mm[W] x 1.6mm[H] the Half is sure to fit into just about any of your smaller project cases and is ready to provide a solid base for your latest build. Don't forget to secure your project with it's four 3mm (M3) mounting holes.

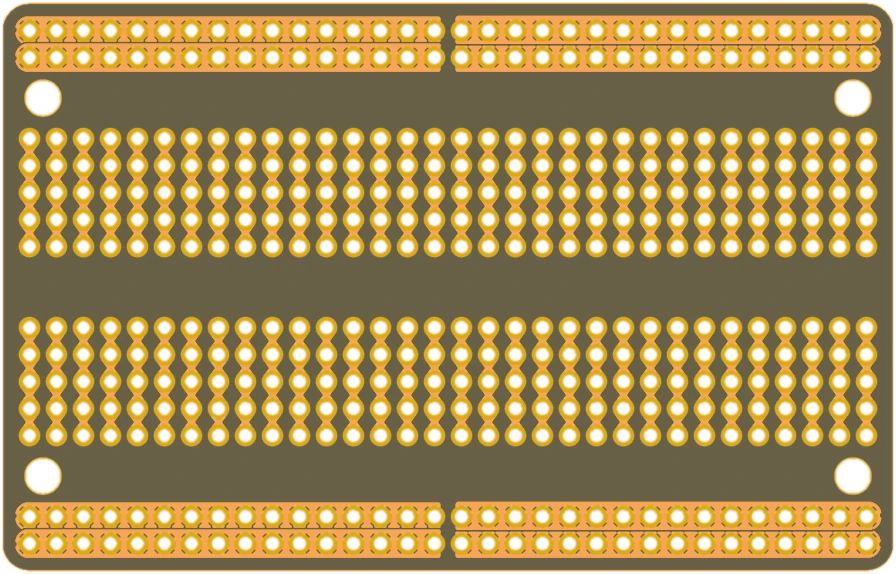

To ease transitioning your projects from breadboard to your new protoboard, the proto's layout mimics the same wiring as a breadboard. This means that the holes in each numbered column are electrically connected to all the other holes in that column, and that column only. The holes A-E in column 0 are connected to each other but not to the other columns, column 1's holes are connected to each other but not to the other columns, and so on. Since we retain the breadboards internal wiring layout, your schematic wont require a single change to move to the new protoboard. Along with having access to your standard positive and negative power rails on each end of the board and you're set to make your project shine.

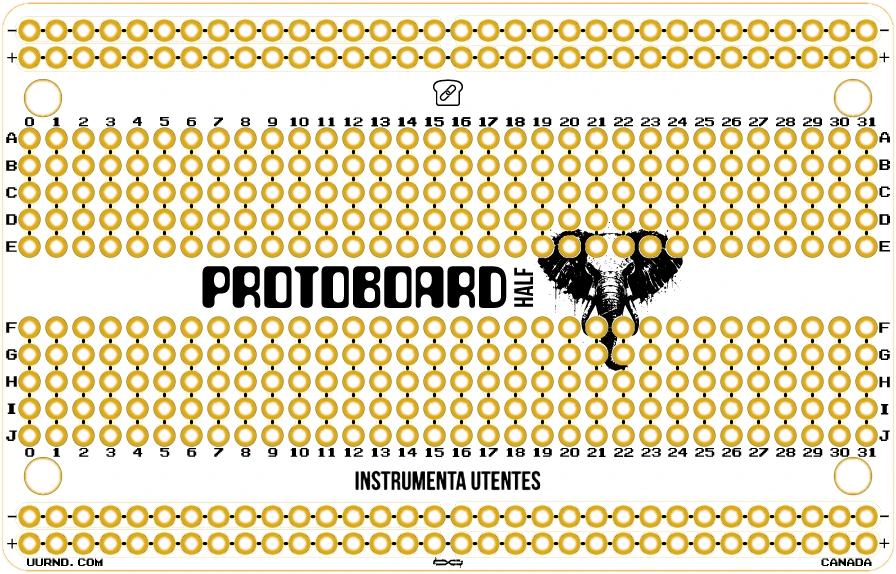

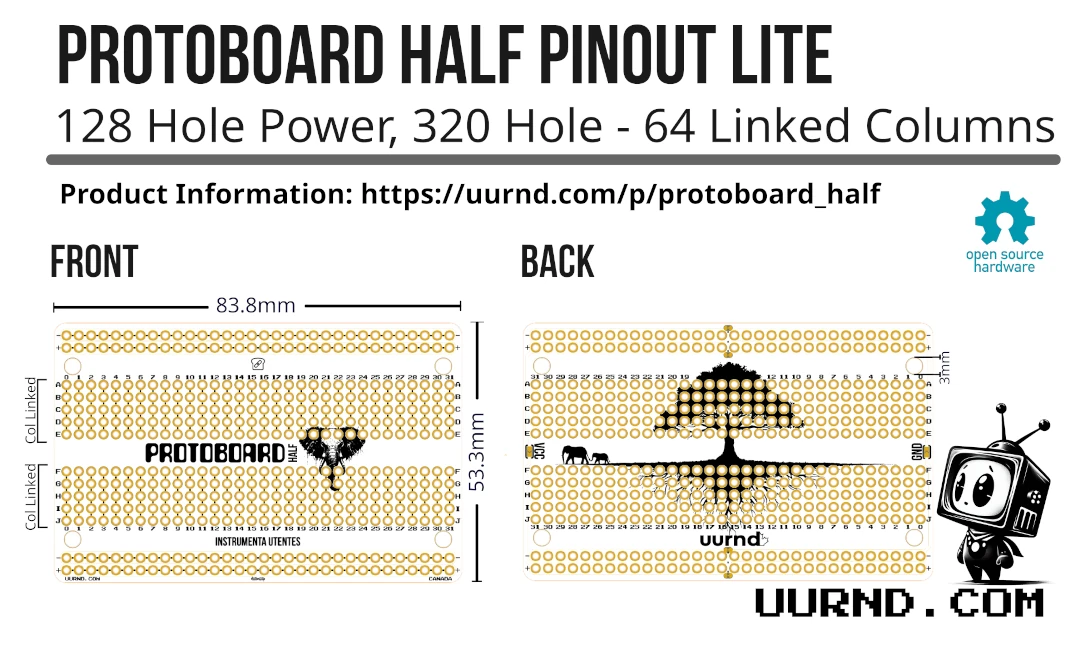

With so many protoboards on hand you may forget which ones are internally connected like a breadboard and which ones aren't. With our protoboards you'll never have that issue. Our protoboards show you how all their pads and holes are connected on their front side. If you look at the silkscreen on your protoboard you'll notice that each pads hole is connected to each other hole in the same column by the black silkscreen printed on the board, that is showing you the boards internal connections. So you'll never need to worry if you have the right board as you can tell just by looking at it.
Boards are additionally marked with this small chain-linked bread icon to indicate internal wiring is linked like a bread board. Pretty good right? Almost a dad joke even. Older boards may just contain the image of the linked chain alone.

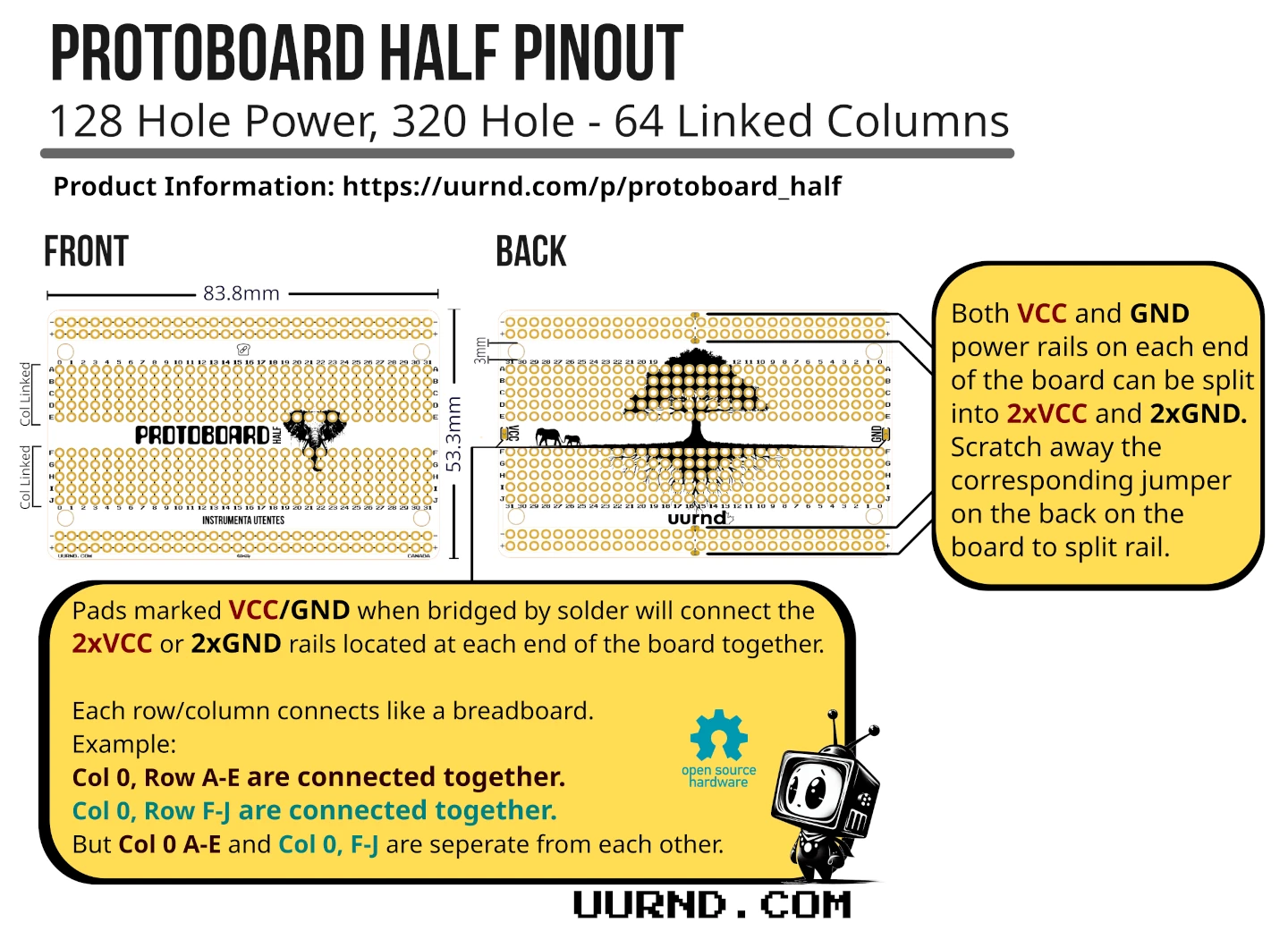

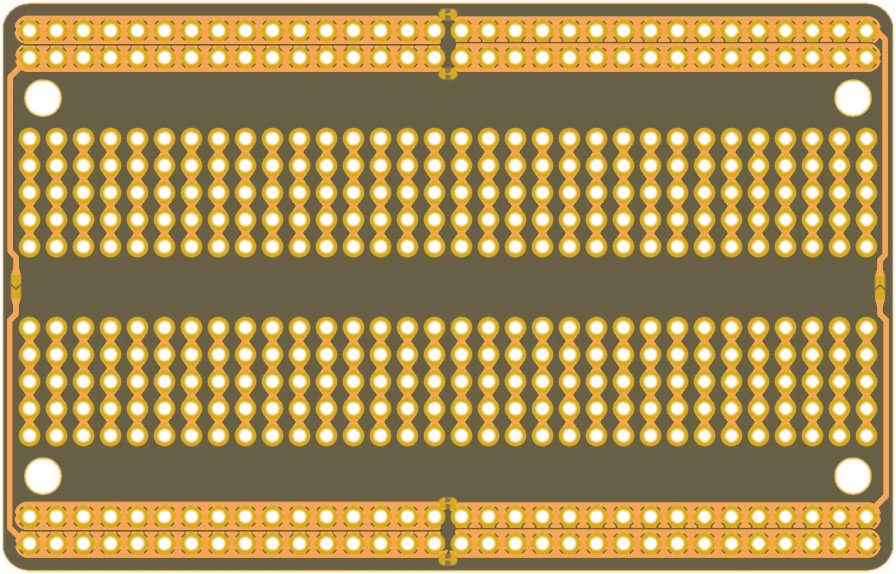

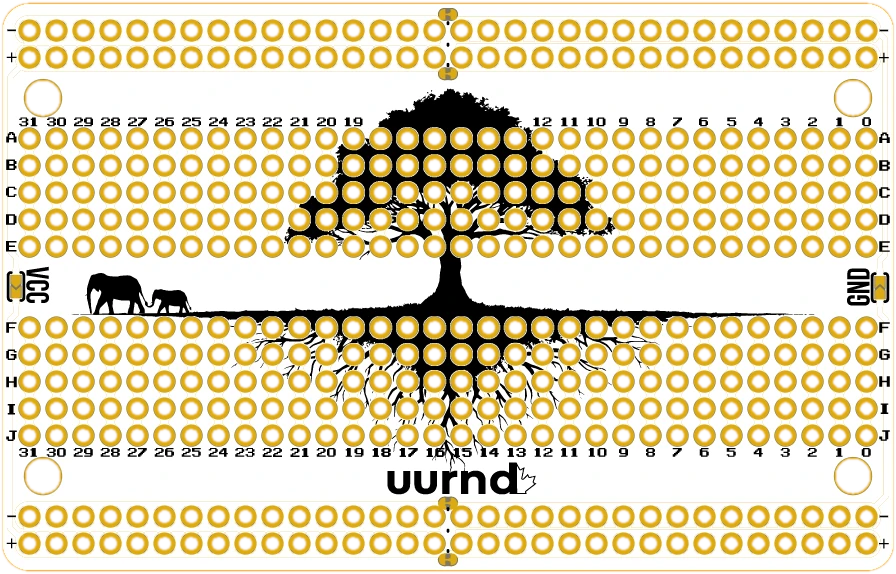

We've also added additional features on The Half. We've added 1 additional solderable jumper on each side of the board. One jumper is marked with VCC and the other is marked with GND. By bridging either of these pads with solder you'll effectively have just connected either your power or ground rails on each side of the protoboard together. Meaning you'd be able to connect power to one of your VCC rails and draw power from the other side, same goes for your Ground Rail. In addition to the above features we've also added the ability to split each VCC rail and each GND rail into two seperate rails. Meaning you can split your standard 2x VCC rails into 4x rails and add additional power sources, same with the ground rails. Each VCC and GND rail comes equipped with a small pre-connected solderable jumper, simply scratch away the small wire conencted the rail you want to split to break it into 2x rails.
Free Product Related 3D Print Models
Product Specifications
Protoboard Type: Half
- Length: 53.34mm
- Width: 83.82mm
- Board Thickness: 1.6mm
- Corner Radius: 2.53mm
- Pad Hole Spacing: 2.54mm
- Hole Diameter w/ Pad: 2mm
- Hole Diameter: 1.1mm
- Solder Mask: 0.51mm
- Mounting Hole(s) Diameter: 3mm [M3]
Number of Pad Holes: 448
Number of Columns: 64
Number of Rows: 10
Number of Rows Per Column: 5
Number of Pads Per Ground Rail: 32
Number of Ground Rails: 2
Number of Pads Per Power Rail: 32
Number of Power Rails: 2
Wiring Matrix: Breadboard Style
Additional Features: Solderable Jumpers to connect either both your VCC rails or GND rails together. Pre-Connected solderable jumpers to split each VCC and GND rail into 2x seperate rails to allow for additional power or ground sources.
Schematics, Layout, BOM and Gerbers
Protoboard Half
448 Pin Holes, (64 Columns x 2 Gnd Rails x 2 Pwr Rails)
SKU: Coming Soon!
Your new Protoboard Half is your ticket to migrating your new circuits, DIY projects, custom sensors, add-on boards and more from simply sitting on your breadboard and stuck in a drawer when finished to being ready to take the next step and show it off to your friends, family and co-workers. When you've finished testing your idea on a solderless breadboard and you're ready to move your brain's baby to a more reliable and more permanent base. Migrate to the Protoboard Half! At 1/2 the size of a full breadboard its the perfect size for your large projects but still small enough room to save you from needing an overly large case.
Key Features:
- Significantly more reliable then a breadboard
- Instrumenta Utentes Series Designs
- Solderable Jumpers to join both Ground or Power rails
- Pre Soldered Jumpers split each Ground or Power rail into 2x seperate rails.
- Open source product
Canadian designed and manufactured
