Oscilliscope Mod
Product Description
Due to the poor design by Hantek the Hantek6022BE went from a cheap functional osciliscope for a beginner to a near useless one. We've taken it upon ourselves to see what designs were out there and make it easier for the average user or beginner to add AC Coupling to this scope.
Please note, while we will reference OpenHantek we are not affiliated with them. They simple have the best software and designs for the Hantek6022BE.
As with all products where you're modifying hardware there is a risk to breaking them in the process. While we feel this is a relatively straightforward process to add AC Coupling and is low risk, you are liable for any actions taken that may result in injury, damages to your property and so on. We are not resposible for any damage that may happen as a result of using one of our experimental boards.
Get the OpenHantek Software Here.
Original Design for the AC Coupling Mod belongs to: OpenHantek

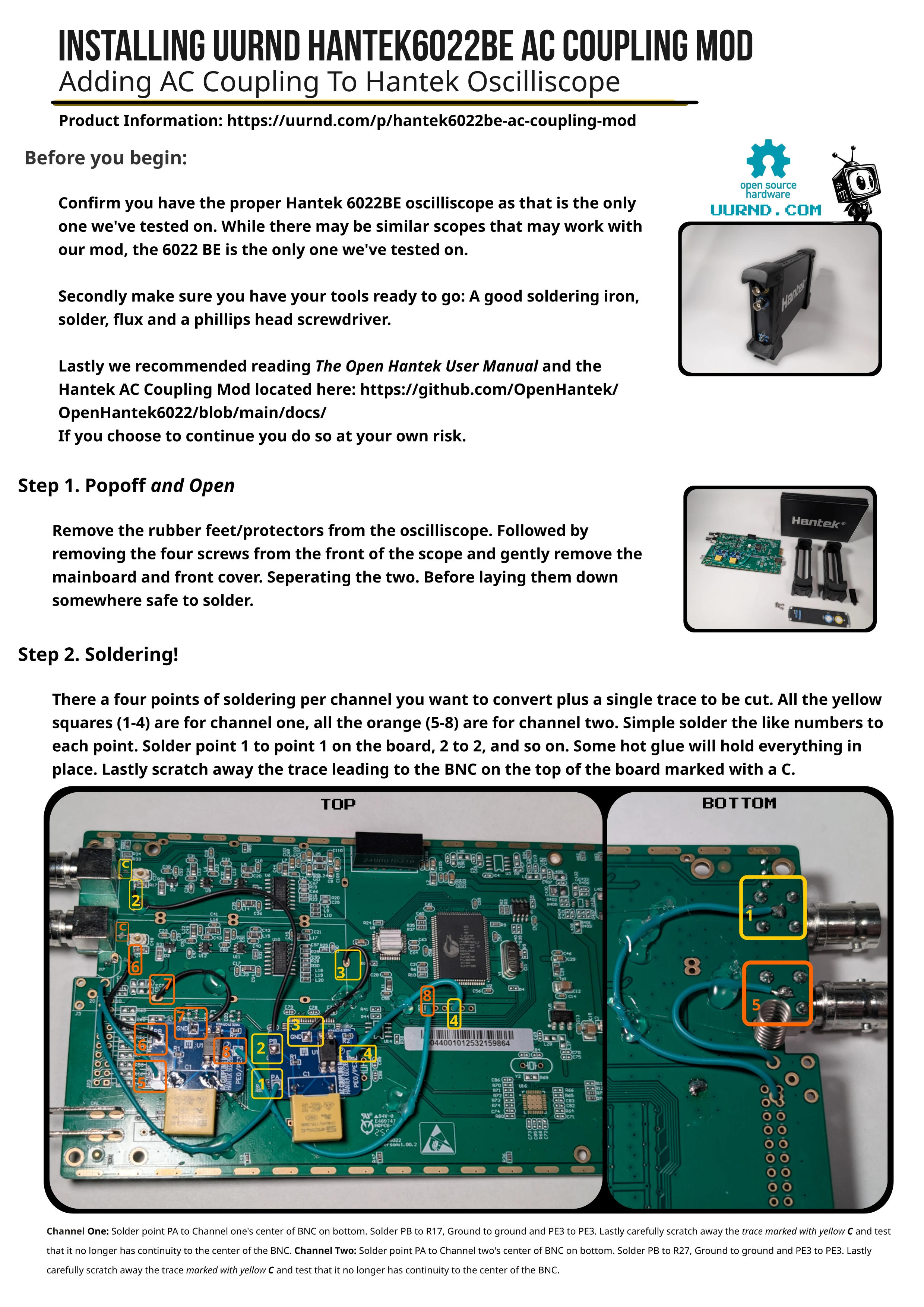

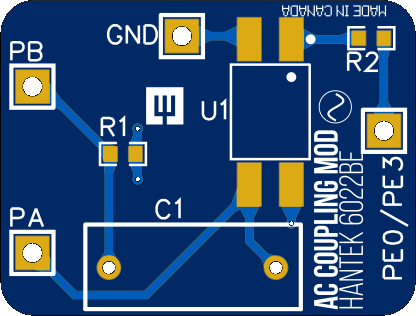

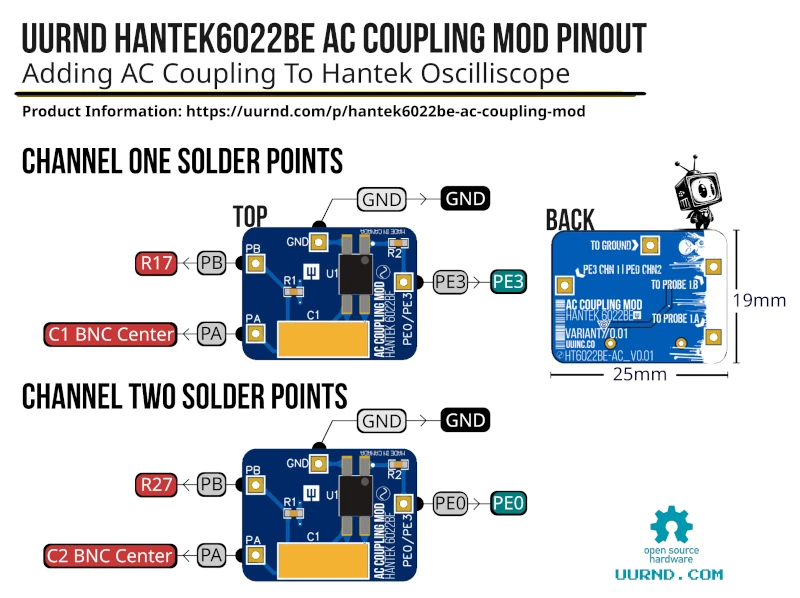

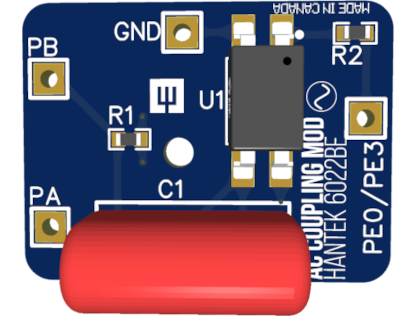

Schematics, Layout, BOM and Gerbers
Important Github Repositories

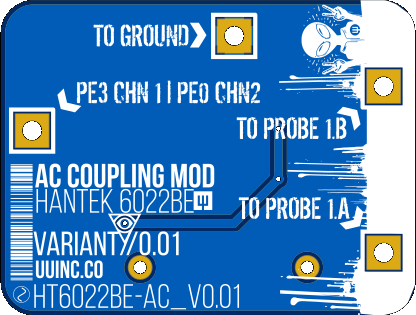

Hantek6022BE Oscilliscope AC Coupling Mod
Converts Channel to AC Coupling
SKU: 0003HTAC001
Correct Hantek's shortsighted design and grant your Hantek 6022BE the ability to use AC Coupling with this easy modification. While we are not affiliated with OpenHantek, The modification relies on the amazing Open Hantek software and will not work with the native Hantek software package. Get the OpenHantek Software Here
Key Features:
- Turns a near useless oscilliscope into a great one for beginners
- Adds AC Coupling cheaply and effeciently
- Open Source Product
- Only Three Solder Points Per Channel
Canadian modified and manufactured
